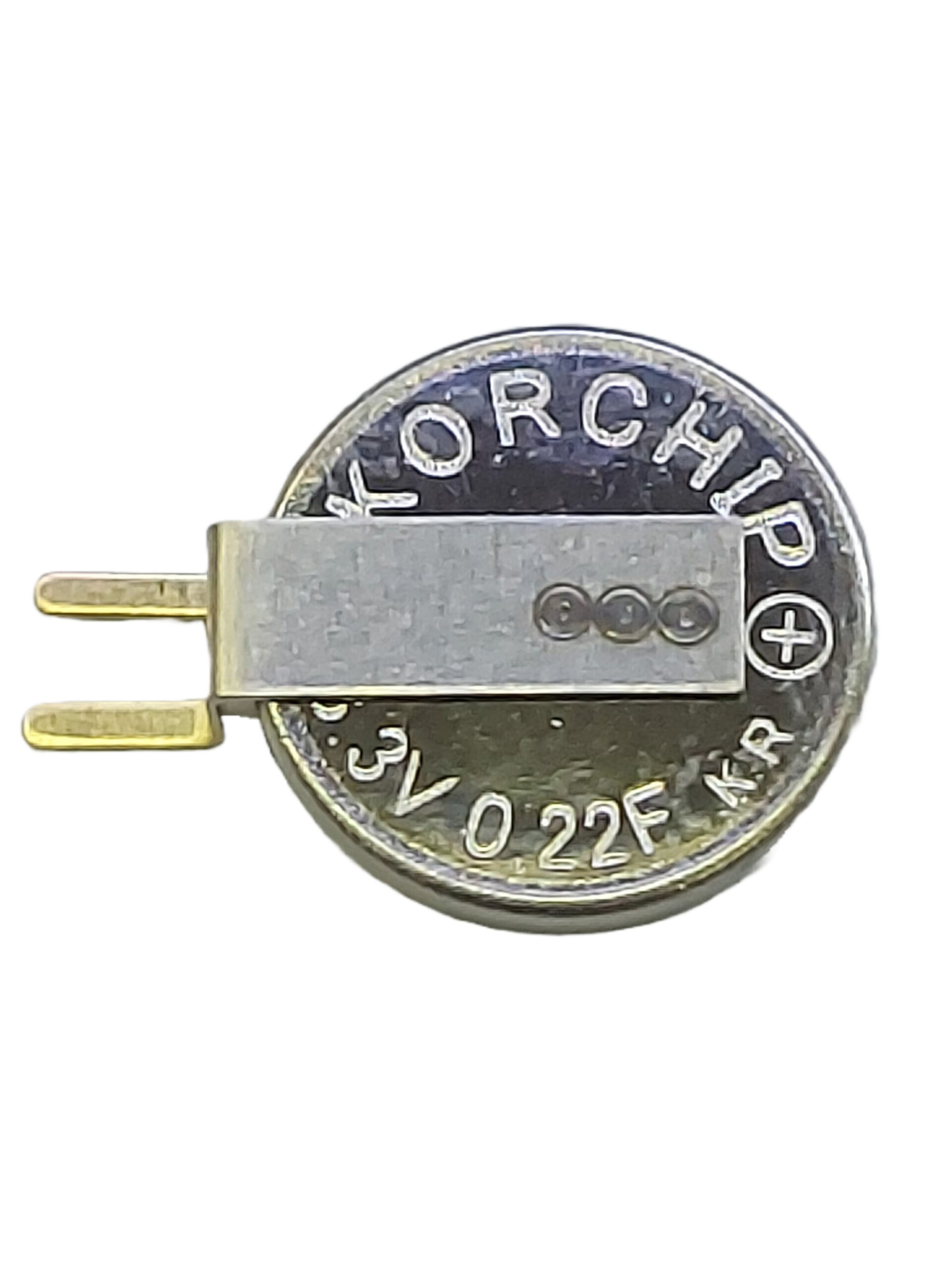

0.22F 3.3V Super Capacitor DMS3R3224RS

0.22F 3.3V Super Capacitor DMS3R3224RS Multi Layer Super Capacitor by Korchip Corporation made in Korea. Features:  Small-sized, but large capacity Unlike battery, almost unlimited charge/discharge cycle Applications of 0.22F 3.3V Super Capacitor DMS3R3224RS: Ideal for solar watches, solar calculators, MP3, PMP, Memory back-up for Cellular phone, Digital camera, PDA, Digital Photo Frame, Digital Health Care Devices. GPS devices. Specifications Rated working voltage (V) : 3.3VDC Operating temperature : -10℃ to 60℃ Normal Cap. Range : 0.22F Capacitance tolerance : -20% to 80%(at 25℃) Endurance : After 1,000hours application of rated DC working voltage at 60℃ the capacitor shall meet the following limits. ⇒Capacitance change : ±30% of spec. value ⇒Internal resistance : ≤400% of spec. value Shelf life : After 1,000hours storage at 60℃ without load, the capacitor shall meet the specified limit for “Endurance” ESR (Ω, @1kHz) : ≤ 200 ΦD×L (mm) : Ø6.8×1.4 NOTE: It is not allowed to go through reflow (IR, Atmosphere heating methods etc.) process Do not touch the metal case of the capacitors with the soldering tip. soldering Iron Tip : 350℃ or Less Soldering Time : 3 Sec or Less.   SKU: LC-93 Category: CAPACITORS
