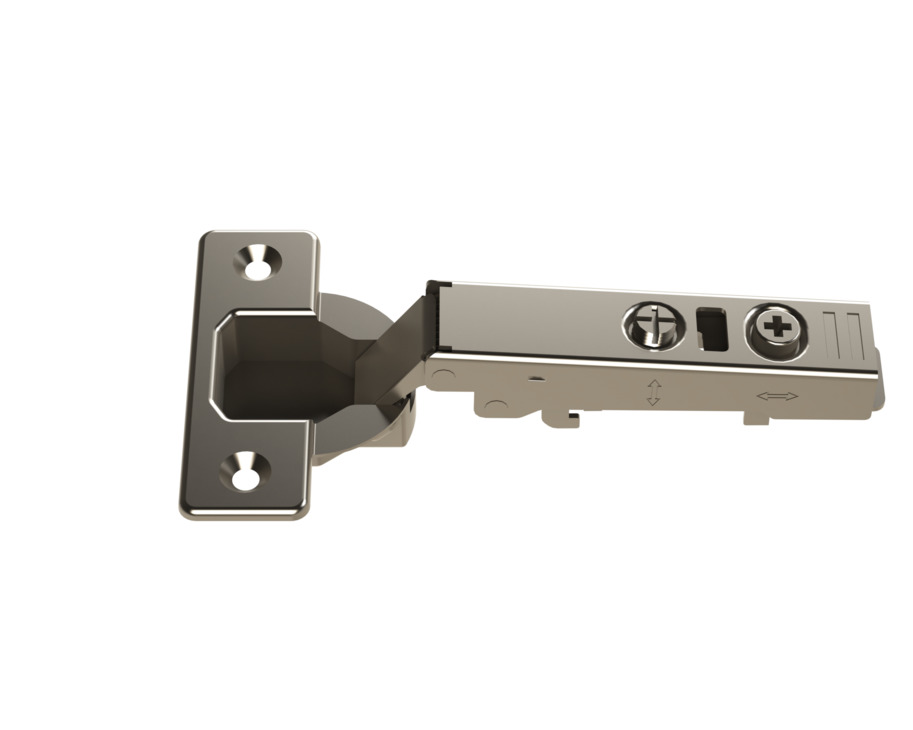

Concealed Cup Hinge, full overlay mounting

German Precision Hinge Experience the epitome of German quality with our precision-engineered hinge.Crafted to perfection, this hinge embodies the highest standards of durability, functionality, and aesthetics.The smooth and silent operation of the soft-closing mechanism ensures gentle and controlled closure for your convenience.Elevate your project with the reliability and performance of our exceptional hinge solution. Adjustable in All Dimensions Our hinge is adjustable in all dimensions, allowing you to customize it to your exact specifications.Achieve seamless functionality and precise alignment for your doors with ease. Refer to the illustration for the adjustable dimensions:Depth adjustmentHorizontal adjustmentVertical adjustment Technical Specifications Concealed hinge version Full overlay mounting Material Cold rolled steel Mounting plate material Zinc, galvanized Closing mechanism Soft closing Opening angle 110° Cup drilling depth 12 mm Cup drilling Ø 35 mm Drilling pattern 48/6 Dimensions 105.5×61.6×37.5 mm
