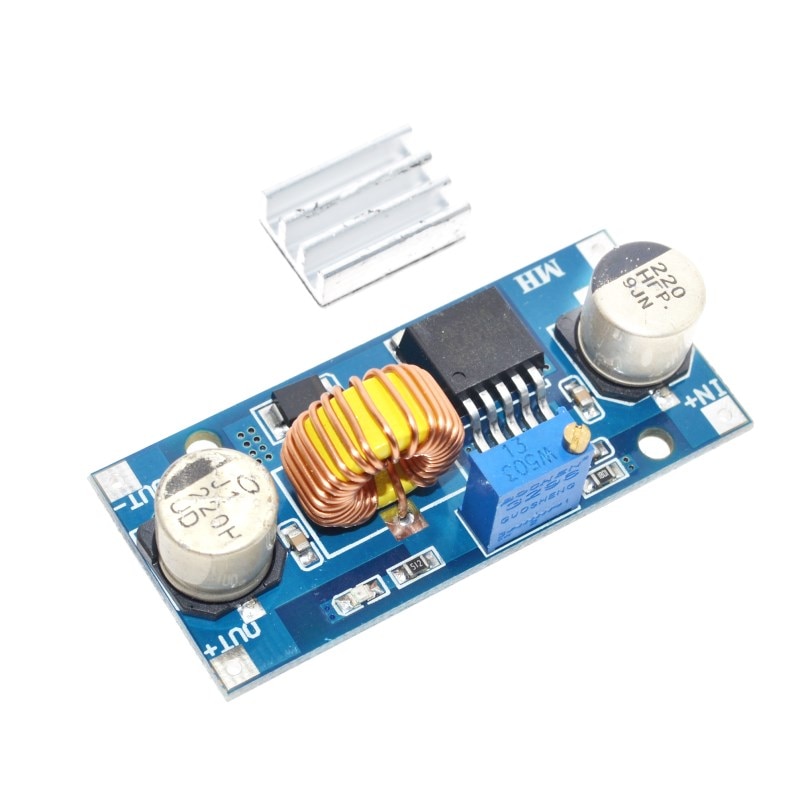

XL4015 Buck Converter Module

XL4015 Buck Converter Module DC TO DC 5A XL4015 Step Down Adjustable Power Supply Module Features of XL4015 Buck Converter: Module nature: non-isolated step-down module (BUCK) Input voltage: 4-38V (please try not to exceed 38V for input) Output voltage: 1.25-36V continuously adjustable Output current: 0-, it is recommended to use within 4. Output power: It is recommended to use within 75W, please add a heat sink if it exceeds 50W. Working temperature: -40~ 85 degrees Working frequency: 180KHz Conversion efficiency: 96% higher (efficiency is related to input, output voltage, current, and pressure difference) Load regulation rate: S(I)≤0.8% Voltage adjustment rate: S(u)≤0.8% Power indicator: Yes Short circuit protection: Yes (limited current 8A) Over-temperature protection: Yes (automatically shut down the output after over-temperature) Input reverse connection protection: None, (if necessary, please connect high current diodes in series in the input) Installation method: 2 3mm screws Connection method: welding, V-IN is input, V-OUT is output Module size: 54mm long, 23mm wide and 18mm high Package Includes: XL4015 Buck Converter Module x 1 Piece Click here to buy other types of DC to DC Converters: Wiki on DC to DC Converters: SKU: C-50 Categories: DC to DC Converters, POWER SUPPLY Tag: DC TO DC 5A XL4015 Step Down Adjustable Power Supply Module
