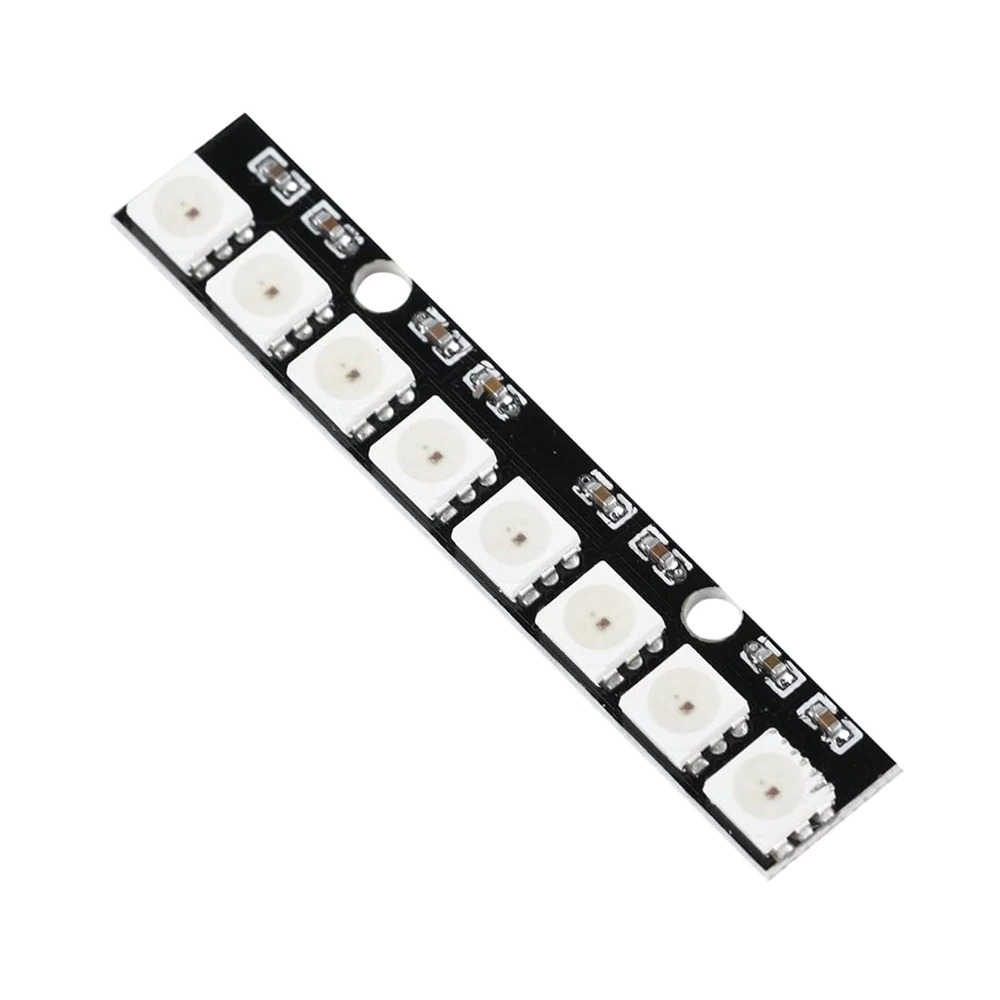

8 Bit WS2812 5050 RGB LED Strip

This is a great collection of WS2812B RGB Addressable LED Modules in a straight PCB. WS2812B is an intelligent LED that includes the photo diode and an addressable controller chip both are available and integrated into a single 5050 Components package. The major advantages of these LEDs are that one can access each LEDs individually and control the light as each LEDs has a unique address. These small LEDs with merely a centimeter in diameter can be connected in a daisy chain manners and many numbers of LEDs can be connected. This Straight LED PCB consists of 8 WS2812 LEDs. The pinout of this PCB is GND, VCC, Input, Output. The daisy chain connection will follow in a way that the Input of a strip will be the Output of previous strip. WS2812 8 Bit RGB LED (Straight) pinout:  Package Contains 1x WS2812 8 Bit RGB LED (Straight – 8 LEDs) WS2812 Specifications: 4-7V DC, 5V Recommended Supply voltage 120 degrees viewing angle. Red: (620-630nm) @ 550-700mcd Green: (515-530nm) @ 1100-1400mcd Blue: (465-475nm) @ 200-400mcd 256 brightness levels for each pixel of three primary colors. 8 LEDs are available in a row. The 5050 package has a control circuit and Light Emitting Diode both inside one package. Cascading port transmission signal by a single line. The color of the light was highly consistent and eye soothing. WS2812 8 Bit RGB LED (Straight) Applications: Decorative Lighting LED lighting for special purposes Irregular LED display Notification Board LED based notification display Cascaded lighting. SKU: MBR-40 Category: LEDs Tag: 8 Bit WS2812 5050 RGB LED Strip
