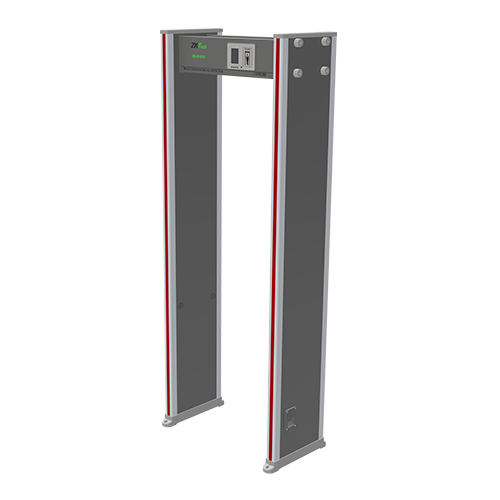

ZkTeco 18 Zones Walk Through Metal Detector

Parameters Display 5” TFT Color Screen Physical Keypad Detection Zone 6 / 12 /18 zones mode adjustable Sensitivity Level 500 Channel 100 Smallest Metal Objects Detected Coin-sized Metals Maximum Detection Distance Vertical 20-2000 mm Detection Sound Alert 6 types of alarm tones (adjustable) 0-6 levels of volume adjustable (Maximum volume 80 dB)  Detection Visual Indicator 2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected) Throughput >40 persons per minute Self-diagnosis Program Yes Detection Mode Automatic Detection Mode/ Infrared Detection Mode (default) Number of IR Groups 2 Detected Contrabands Ferrous and non-ferrous metal weapons Enclosure Material Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC Power Supply AC100V to 240V (DC12V/3A) Input Voltage DC12V Operating Current 4A Operating Power 16W Operating Time (Estimated) 24/7 operation capability (continuous operation) Operating Frequency 7KHz ~ 9.6KHz Operating Temperature -20°C ~ 55°C Storage Temperature -25°C ~ 60°C Operating Humidity <95% RH (non-condensing) Ingress Protection Rating N/A (waterproof and dustproof) N/A (vandal resistant) Application Environment Indoor Dimensions (L*W*H) 2213 * 831 * 471 (mm) Lane Size (L*W*H) 2000*710*399 (mm) Dimensions with Packaging (L*W*H) 2266 * 540 * 270 (mm) Gross Weight 42kg Net Weight 35kg Interface Relay Output: NO Network Interface: NO  Certifications CE, FCC, ISO9001 Remote Control NO
