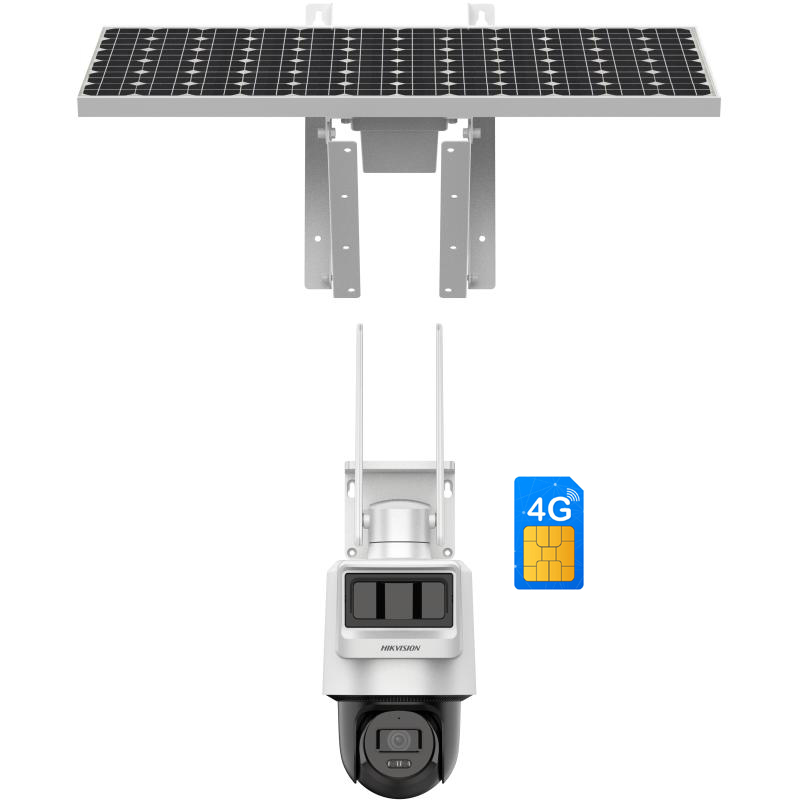

Hikvision 4MP Pro Solar-powered Security PT Camera

Camera Image Sensor1/2.7″ Progressive Scan CMOS Max. Resolution2560 × 1440 Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time1/3 s to 1/100,000 s Day & NightIR cut filter Lens Lens TypeFixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85° Lens MountM12 Iris TypeFixed ApertureF1.6 PTZ Movement Range (Pan)0° to 340° Movement Range (Tilt)0° to 80° Pan SpeedUp to 25°/s Tilt SpeedUp to 25°/s DORI DORI 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m Illuminator Supplement Light TypeIR Supplement Light RangeUp to 30 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile,Main Profile,High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Region of Interest (ROI)1 fixed region for main stream Audio Audio TypeMono sound Audio Sampling Rate8 kHz/16 kHz Environment Noise FilteringYes Audio CompressionG.722.1/G.711/MP2L2/PCM/G.726/AAC-LC Audio Bit Rate16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC) Network APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Simultaneous Live ViewUp to 6 channels ProtocolsTCP/IP, DHCP, IPv4 User/Host Up to 32 users 3 user levels: administrator, operator, and user ClientHik-Connect,HikCentral Professional, Hik-Partner Pro Web BrowserLocal service: IE 11, Chrome 57.0 , Firefox 52.0 , Edge 89 Mobile Communication StandardLTE-FDD,LTE-TDD,UMTS Frequency EU: LTE-FDD: B1/3/5/7/8/20/28 IN: LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 LA: LTE-FDD: B2/3/4/5/7/8/28/66 NA: LTE-FDD: B2/4/5/12/13/17/66/71 UMTS: B2/4/5 Uplink and Downlink Data Rate EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps NA: uplink: 50 Mbps, downlink: 150 Mbps SIM Card TypeNano SIM Image Wide Dynamic Range (WDR)Digital WDR SNR≥ 52 dB Day/Night SwitchDay,Night,Auto,Schedule Image EnhancementBLC,HLC,3D DNR Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Transducer Transducer TypePIR Radar Detection AngleHorizontal: 80°, vertical: 30° Detection RangeUp to 12 m Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone1 built-in microphone Built-in Speaker1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. Reset KeyYes Event Basic Eventexception LinkageUpload to memory card, notify surveillance center, trigger recording, trigger capture, audible warning General Power Power Consumption and Current: Typical power scenarios: 1.85 W (4G working) Standby scenarios: 80 mW Max. Power consumption: 7 W Power Supply: 12 VDC ± 25% *For debugging only 20 W (deviation: ± 5%) Solar panels Power Interface: Power supply interface: four-core aviation connector Extened solar panel: four-core aviation connector MaterialPlastic Dimension133.1 mm × 177.64 mm × 382.44/412.44 mm (5.24″ × 6.99″ × 15.06/16.24″) Package Dimension622 mm × 312 mm × 340 mm (24.49″ × 12.28″ × 13.39″) Approx. 850 g (1.87 lb.) With Package WeightApprox. 4700 g (10.34 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing) LanguageEnglish, Ukrainian General FunctionHeartbeat,anti-banding,mirror,password protection Battery Battery TypeTernary Lithium Battery Voltage9 V to 12.6 V Capacity90 Wh Max. Charging Voltage12.6 V Max. Output Voltage12.6 V Operating Temperature Charging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 55 °C (-4 °F to 131 °F) Cycle Lifetime 48 hours (1.85 W) Full charge battery runtime without solar input. Battery LifeMore than 800 cycles Approval RF CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) *CE certification is only for the device sold in the European region. EMC CE-EMC: EN 55032:2015 A1:2020, EN 50130-4:2011 A1:2014, EN IEC 61000-3-2:2019 A1:2021, EN 61000-3-3:2013 A1:2019 A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety CB: IEC 62368-1: 2014 A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 ProtectionIP66: IEC 60529-2013
