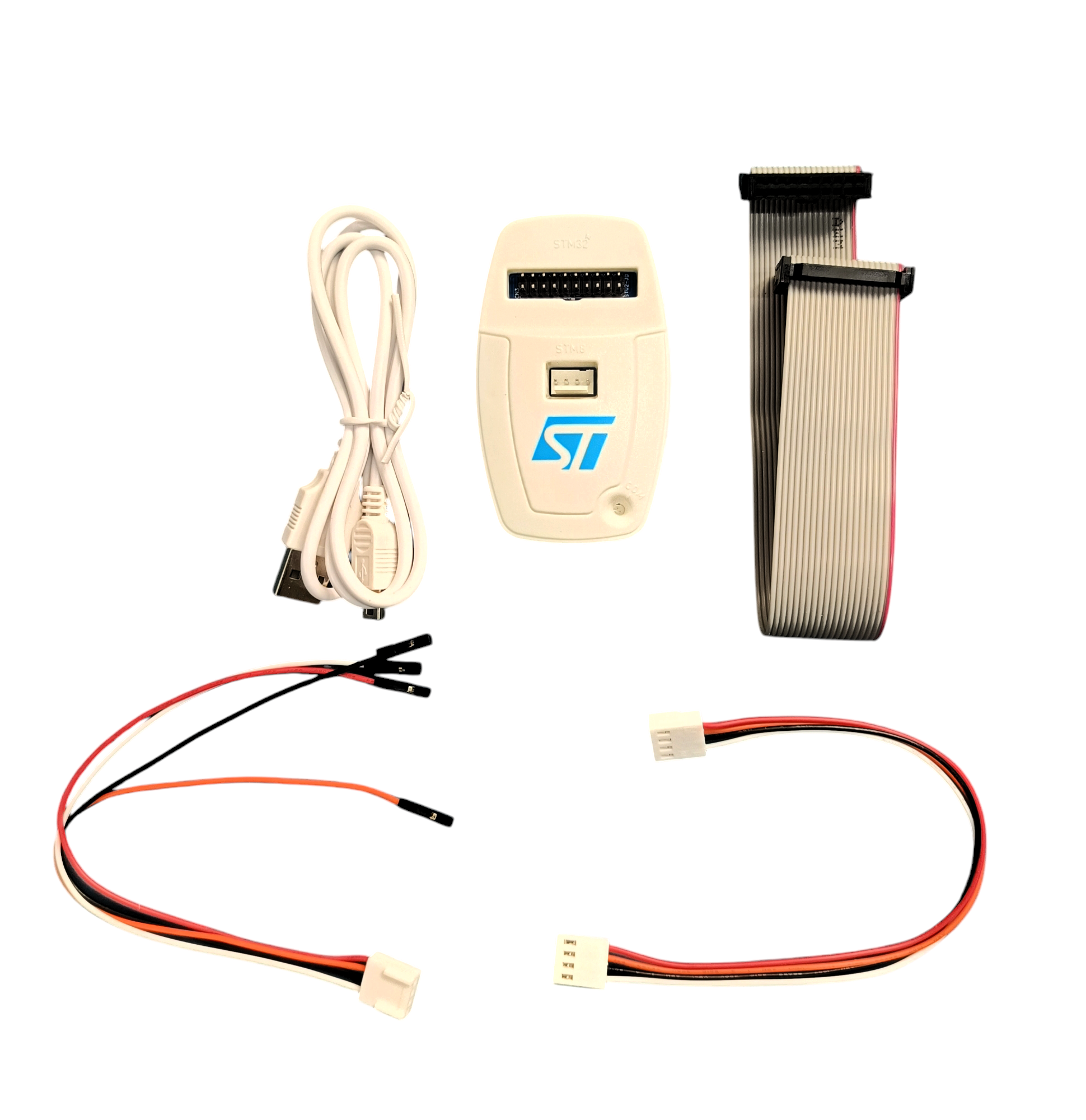

ST-Link V2 Programmer and Debugger

Product Overview ST-Link V2 Programmer and Debugger ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.STM8 applications use the USB full-speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software. STM32 applications use the USB full-speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments. In addition, to provide the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 Vrms. Features of ST-Link V2 Programmer and Debugger 5V power supplied by a USB connector. USB 2.0 full-speed compatible interface. 1.65V  to 5.5V application voltage supported on SWIM interface. SWIM low speed and high speed modes supported. 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs. Direct firmware update feature supported. Status LED which blinks during communicaiton with PC. Specifications of ST-Link V2 Programmer Operating Supply Voltage 1.65V – 5.5V Type Debugger, Programmer (In-Circuit/In-System) Interface USB Data Bus Width 8b Applications  Automotive Communications Equipment Computers and Peripherals IoT Applications Personal Electronics Package Includes: 1 x ST-LINK/V2 debugging and programming Unit 1 x USB standard A to mini-B cable 1 x Connecting Cable 1 x Flat ribbon with a standard ERNI connector at one end (A JTAG or SWD and SWV flat ribbon with a 20-pin connector) Click here to buy other Programmers Click here for more info SKU: M-53 Category: PROGRAMMERS
