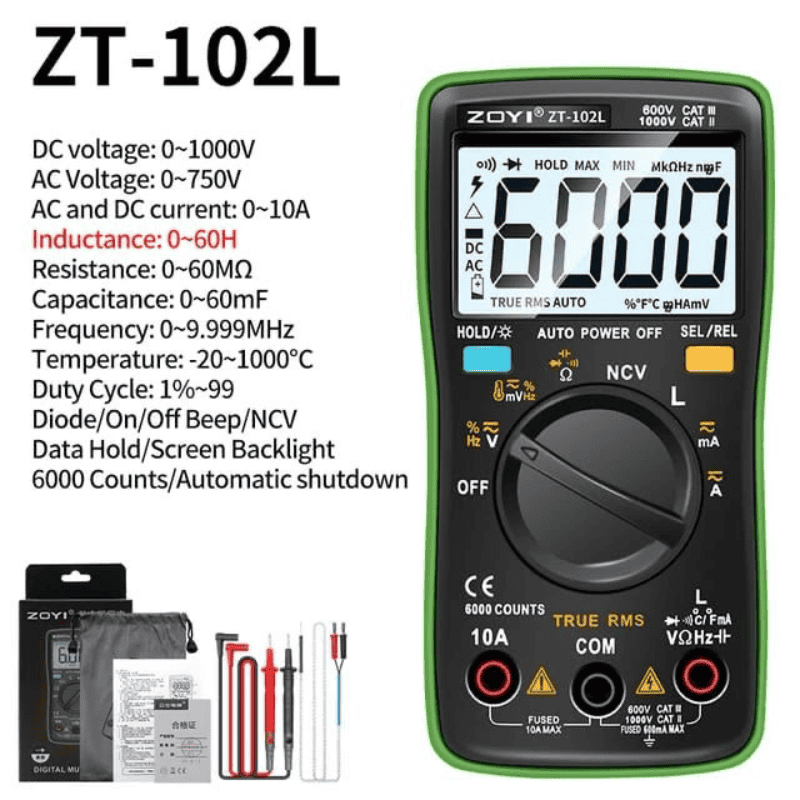

ZT-102L ZOYI MULTIMETER

The ZT-102L is a battery-powered digital multimeter with true RMS and autoranging capabilities. In addition to the standard multimeter functions, it also features inductance measurement. The instrument has a 6000-count display, an LCD screen with backlight for clear readings. B. Safety Information To prevent possible electric shock, fire, or personal injury, please read the safety precautions before use. (1) During measurement, do not exceed the “Technical Specifications” maximum measurement value. (2) Voltages below 36V are considered safe. When measuring DC voltage above 36V or AC voltage above 25V, ensure that the test leads have reliable contact, correct connections, and good insulation to avoid electric shock. (3) When changing functions or ranges, the test leads should be removed from the test points. (4) Select the correct function and range; an over-range measurement will display “OL.
