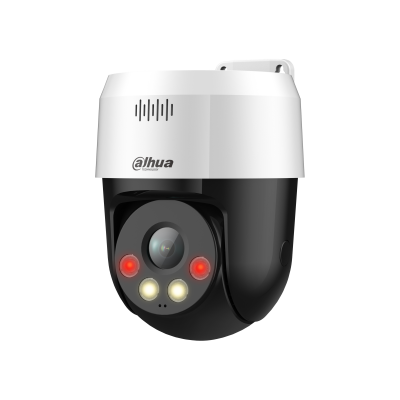

Dahua 5MP Smart Dual Light Network PT POE Camera

Camera Image Sensor 1/2.8″ CMOS Pixel 5 MP Max. Resolution 2560 (H) × 1920(V) ROM 128 MB RAM 128 MB Electronic Shutter Speed 1 s–1/100,000 s Scanning System Progressive Min. Illumination 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) Illumination Distance 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR); Illuminator On/Off Control Manual; auto; off Illuminator Number 2 (IR light); 2 (warm light) Lens Focal Length 4.0 mm Max. Aperture F1.6 Field of View H: 80.4°; V: 58.1°; D: 104.8° Close Focus Distance 0.3 m (0.98 ft) Iris Control Fixed DORI Distance Detect Observe Recognize Identify 77.4 m (253.94 ft) 31.0 m (101.71 ft) 15.5 m (50.85 ft) 7.74 m (25.39 ft) PTZ Pan/Tilt Range Pan: 0° to 345°; Tilt: 0° to 80° Manual Control Speed Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s Preset Speed Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s Preset 300 Power-off Memory Yes Idle Motion Preset Smart Event IVS Tripwire; intrusion Human Detection Yes Intelligence SMD SMD3.0 Active Deterrence Light Warning Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low Sound Warning Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10. Video Video Compression H.264H;H.264B;Smart H.265 ;H.265;Smart H.264 ;H.264M;MJPEG(Sub Stream 1) Streaming Capability 2 streams Resolution 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Video Frame Rate Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 104 kbps-8,192 kbps H265: 41 kbps-8,192 kbps Day/Night Auto (ICR); Color/B/W BLC Yes WDR DWDR HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Defog Electronic Image Rotation 180° S/N Ratio ≥55 dB Audio Audio Compression PCM; G.711a; G.711Mu; G.726; AAC Network Network Port RJ-45 (10/100 Base-T) Network Protocol UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP Interoperability RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (256 GB); FTP Browser IE: IE 7 and later versions; Chrome; Firefox; Safari Management Software Player;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS Mobile Client iOS;Android Certification Certifications CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 Port Audio Input 1 channel (built-in mic) Audio Output 1 channel (built-in speaker) Alarm Linkage Capture; preset; recording; audio; sending email Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Power Power Supply 12 VDC/1.5 A ± 10% PoE (802.3af) Power Consumption Basic: 3.5 W; Max: 9 W (illuminator) Environment Operating Temperature –30 °C to 55 °C (–22 °F to 131 °F) Operating Humidity ≤95% Protection Waterproof and Dustproof;TVS 2000 V lightning proof; surge protection; voltage transient protection Structure Product Dimensions 140.5 mm × Φ111.0 mm (5.53″ × Φ4.37″) Net Weight 0.5 kg (1.10 lb) Gross Weight 1 kg (2.20 lb)
