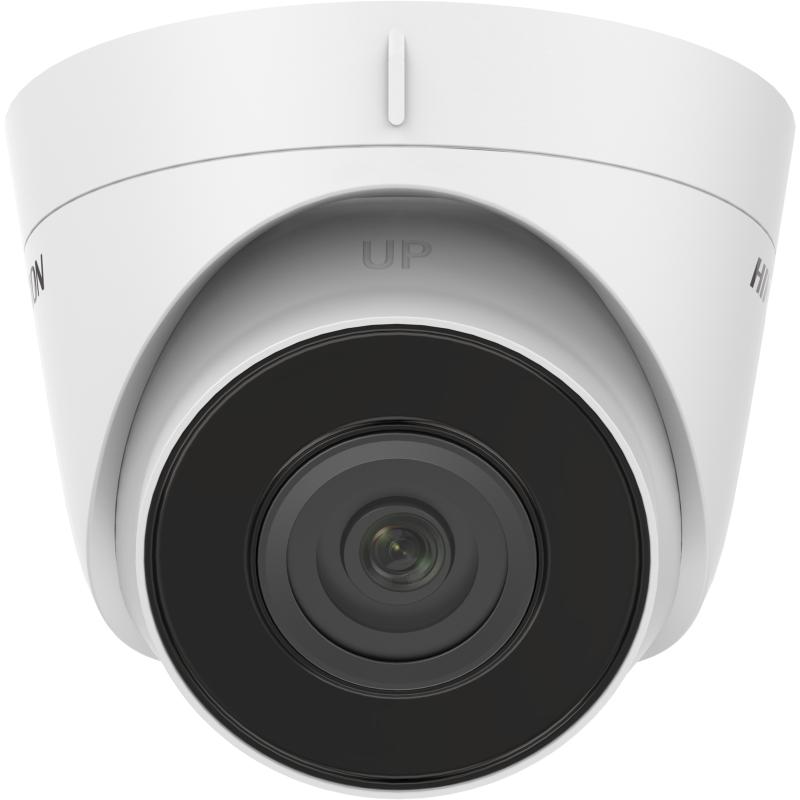

Hikvision 2 MP Fixed Turret Network Camera

Camera Image Sensor1/2.7″ Progressive Scan CMOS Max. Resolution1920 × 1080 Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR Shutter Time1/3 s to 1/100, 000 s Day & NightIR cut filter Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97° Lens MountM12 Iris TypeFixed ApertureF2.0 Illuminator Supplement Light TypeIR Supplement Light RangeUp to 30 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression Main Stream: H.265/H.264/H.264 /H.265 Sub-Stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Region of Interest (ROI)1 fixed region for main stream Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface, ISAPI User/HostUp to 32 users. 3 levels: administrator, operator and user ClientiVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10 Plug-in free live view: Chrome 57.0 , Firefox 52.0 Local service: Chrome 57.0 , Firefox 52.0 Image Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)Digital WDR SNR≥ 52 dB Image EnhancementBLC, 3D DNR Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port Event Basic EventMotion detection, video tampering alarm, exception LinkageUpload to FTP, notify surveillance center, send email General Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W DimensionØ110 mm × 85.3 mm (Ø4.3″ × 3.4″) Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) WeightApprox. 320 g (0.7 lb.) With Package WeightApprox. 556 g (1.2 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) LanguageEnglish, Ukrainian General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 Am 1:2009 Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 Am 1:2009 Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010 A1:2013 A2:2015) EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIP67 (IEC 60529-2013)
