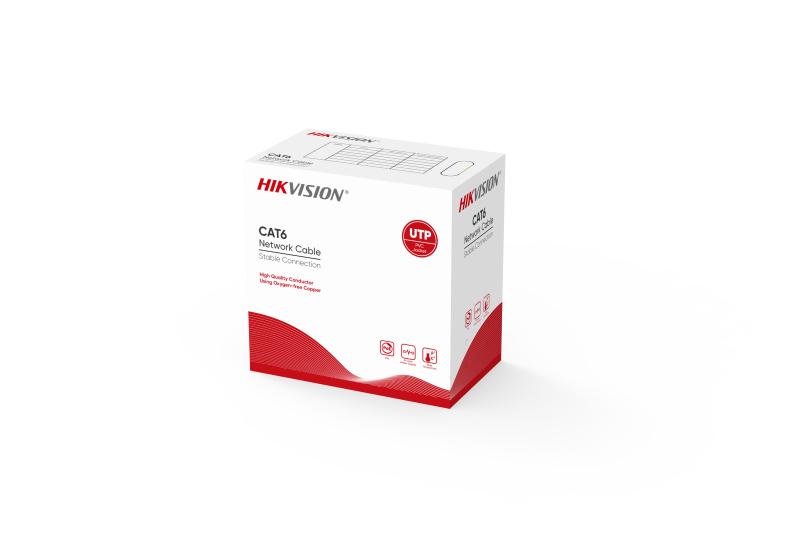

Hikvision CAT-6 Cable 305 Meters Pure Copper

General Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown, PackingWooden Tray & Carton Carton DimensionPer request Packing length305±1.5m Rip-cordYes Drain wireNo Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks, Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0, Conductor MaterialSOLID-Bare Copper,Content 99.95%, Nom.O.D.(mm)0.530±0.005 Insulation MaterialHDPE Diameter0.95±0.05mm Sheath Thickness0.55±0.05 mm External O.D.5.8±0.4mm SurfaceClean,Frap,Satiation MaterialPVC(complies RoHS), CM ColorWhite RAL9003 Surface Printing Letter height3.0±0.3mm ColorBlack Print error & Space≤±0.5%，1m
