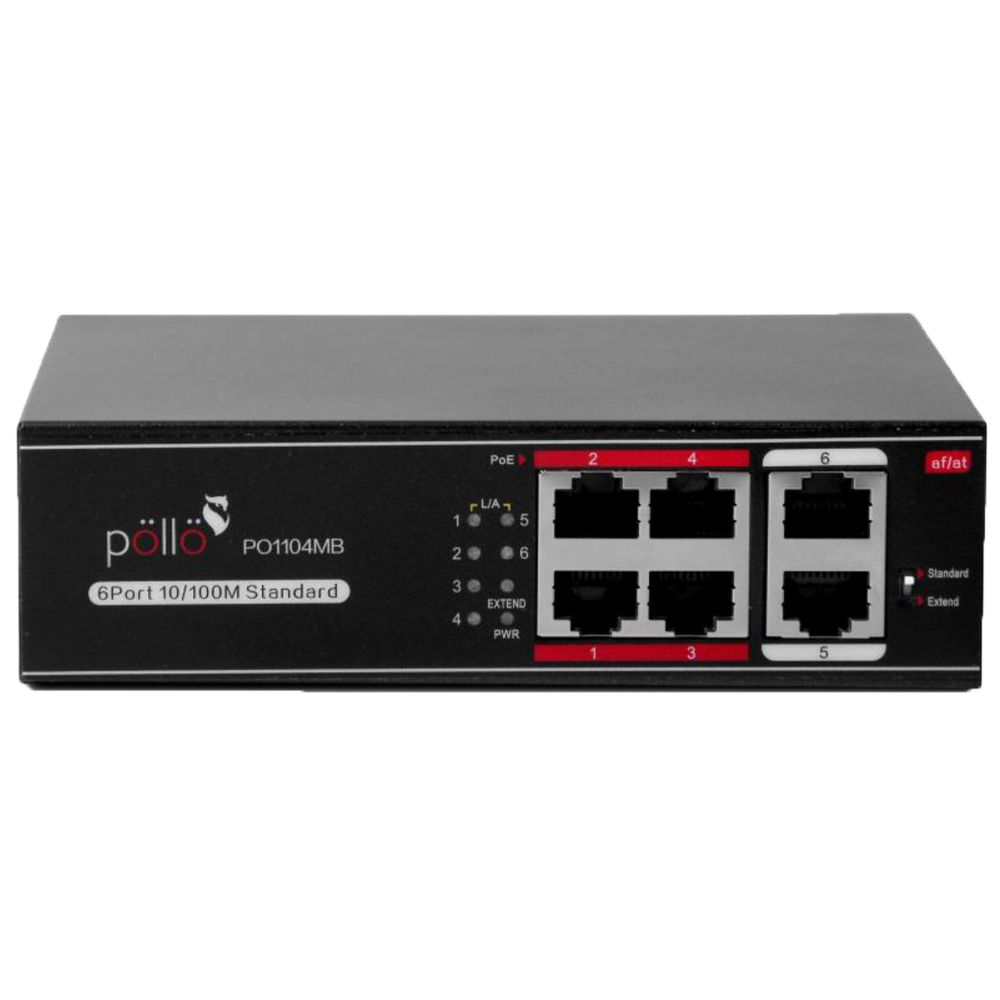

Pollo PoE Switch 04-Port

Product Model PLN-1104MB Fixed Port 4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) Ethernet Port Port 1-6 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing Functional Switch 1*(Extender CCTV) Note: when the switch state changes, it must be restarted before the PoE switch function can take effect Twisted Pair Transmission 10BASE-TX: Cat5 or later UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x Forwarding Mode Store and Forward (Full Wire Speed) Switching Capacity 1.6Gbps (non-blocking) Forwarding Rate@64byte 0.98Mpps MAC 1K Buffer Memory 768K LED Indicator Power: PWR (green), network: Link(yellow), PoE: PoE (green) Functional switch: EXTEND (green) PoE Port Port 1 to 4 IEEE802.3af/at @POE Power Supply Pin Default 1/2( ), 3/6(-), optional 4/5( ), 7/8(-) 2-pairs power supply Max Power Per Port 30W, IEEE802.3af/at Total PWR / Input Voltage 65W/ (AC100-240V) Power Consumption Standby<3W, Full load <65W Power Supply Built-in switching power supply, AC100~240V 50-60Hz 1A Operation TEMP / Humidity -20~ 55°C;5%~90% RH Non condensing Storage TEMP / Humidity -40~ 75°C;5%~95% RH Non condensing Dimension (L*W*H) 142*114.5*40mm Net /Gross Weight <0.6kg / <1kg Installation Desktop, wall mounted Lightning protection / protection level Lightning protection: 4KV 8/20us; Protection level: IP30 Certification CCC, CE mark, commercial, CE/LVD EN60950 FCC Part 15 Class B, RoHS
