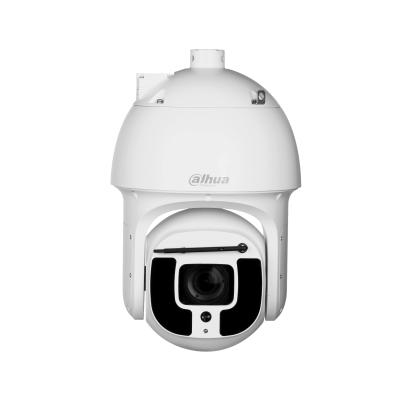

DAHUA 8MP 40x Starlight IR PTZ AI Network Camera

Camera Image Sensor 1/1.8″ CMOS Pixel 8 MP Max. Resolution 3840 (H) x 2160 (V) ROM 8 GB RAM 2 GB Electronic Shutter Speed 1/1 s–1/30,000 s Scanning System Progressive Min. Illumination Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 [email protected] (illuminator on) Illumination Distance 500 m (1640.42 ft) Illuminator On/Off Control Zoom Prio; Manual; Smart IR Illuminator Number 10 IR lights Wiper Smart wiper Lens Focal Length 5.6 mm–223 mm Max. Aperture F1.4–F4.5 Field of View H: 63.9°–2.0°; V: 37.3°–1.1 °; D: 71.2°–2.3 ° Optical Zoom 40x Focus Control Auto; semi-auto; manual Close Focus Distance 0.5 m–2 m (1.64 ft–6.56 ft) Iris Control Auto; manual DORI Distance Detect Observe Recognize Identify 4,400 m (14,435.70 ft) 1,740 m (5,708.66 ft) 880 m (2,887.14 ft) 440 m (1,443.57 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Pan: 0° to 360° Tilt: –30° to 90°, auto flip 180° Manual Control Speed Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s Preset Speed Pan: 240°/s; Tilt: 120°/s Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Speed Adjustment Yes Power-off Memory Yes Idle Motion Preset; Tour; Pattern; Scanning PTZ Protocol DH-SD Pelco-P/D (auto recognition) Smart Event Event Trigger Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly IVS Object Abandoned/Missing Intelligence Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification Face Recognition Yes Auto Tracking Yes Video Video Compression Smart H.265 ; H.265; Smart H.264 ; H.264; MJPEG (Sub Stream 1) Streaming Capability 3 streams Resolution 4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) Video Frame Rate Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) Bit Rate Control CBR; VBR Video Bit Rate H264: 512 kbps–16384 kbps H265: 256 kbps–10240 kbps Day/Night Auto (ICR); Color; B/W BLC Yes WDR 120 dB HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Defog Optical Digital Zoom 16x Image Rotation 0°; 180° Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view S/N Ratio ≥55 dB Audio Audio Compression G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723 Network Network Port RJ-45 (10/100 Base-T) Network Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP Interoperability ONVIF (Profile S&G&T); CGI Streaming Method Unicast; Multicast User/Host 20 (total bandwidth: 64 M) Storage FTP; Micro SD card (512GB) Browser IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS Mobile Client iOS; Android Certification Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 Port Analog Output 1 BNC RS-485 1 (baud rate range: 1200 bps–9600 bps) Alarm I/O 7/2 Audio I/O 1/1 Power Power Supply 36 VDC, 2.23 A (±25%) Hi-PoE Power Consumption Basic: 30 W Max.: 48 W (illuminator PTZ working) Environment Operating Temperature –40 °C to 70 °C (–40 °F to 158 °F) Operating Humidity ≤95% (RH) Protection IP67; TVS 6000 V lightning protection; surge protection; voltage transient protection Structure Casing Metal Product Dimensions 415.6 mm × Φ26 2 mm (16.36″ × Φ10.31″) Net Weight 10 kg (22.05 lb) Gross Weight 12 kg (26.46 lb)
