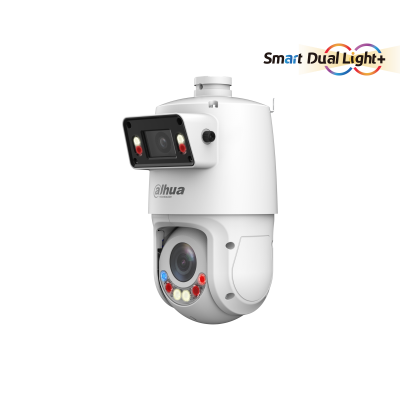

Dahua X-Spans 4MP 4MP 25x TiOC WizSense Network PTZ Camera

Camera Image Sensor Panorama: 1/2.8″ CMOS; Detail: 1/2.8″ CMOS Pixel Panorama: 4 MP; Detail: 4 MP Max. Resolution Panorama: 2560 (H) × 1440 (V); Detail: 2560 (H) × 1440 (V) ROM Panorama: 4 GB; Detail: 4 GB RAM Panorama: 1 GB; Detail: 1 GB Electronic Shutter Speed Panorama: 1/3s-1/100000s; Detail: 1s-1/30000s Scanning System Progressive Min. Illumination Panorama: 0.001 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on); Detail: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) Illumination Distance Panorama: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail: 100 m (328.08 ft) (IR) 50 m (164.04 ft) (white light) Illuminator On/Off Control Panorama: Auto; Manual; Off; Detail: Zoom Prio; Auto; Manual; Off Illuminator Number Panorama: 2 (IR); 2 (white light); Detail: 2 (IR); 2 (dual light Fusion) Lens Focal Length Panorama: 2.8 mm; Detail: 5 mm–125 mm Max. Aperture Panorama: F1.0; Detail: F1.6–F3.6 Field of View Panorama: H: 101°; V: 53°; D: 120°; Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° Optical Zoom Panorama: NA; Detail: 25× Focus Control Auto; semi-auto; manual Close Focus Distance Panorama: 0.2 m (0.66 ft); Detail: 0.1 m–0.5 m (0.33 ft–1.64 ft) Iris Control Auto; manual DORI Distance Detect Observe Recognize Identify 2500 m (8202.10 ft) 987.5 m (3239.83 ft) 500 m (1640.42 ft) 250 m (820.21 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Panorama camera: Tilt: 13° to 23°; Detail camera: Pan: 0° to 360° endless; Tilt: –15° to 90°, auto flip 180° Manual Control Speed Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–120°/s Preset Speed Pan: 240°/s; Tilt: 200°/s Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Pattern; Preset; Scan; Tour Intelligence IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linking the detail camera to track objects Auto Tracking Yes SMD SMD4.0 Quick Pick Yes Active Deterrence Light Warning Red-blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low Sound Warning Offers 11 sound alarms and supports importing custom sound alarms. Video Video Compression H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); smart H.265 ; smart H.264 Streaming Capability 3 streams Resolution Panorama: 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240) Detail: 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Video Frame Rate Main stream: 4 MP/3 MP/1080p/1.3 MP/720p@(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 96 Kbps–14848 Kbps H265: 38 Kbps–8960 Kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR 120 dB HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Image Stabilization EIS Defog Electronic Digital Zoom 16× Image Rotation 180° S/N Ratio ≥ 55 dB Audio Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 Network Network Port RJ-45 (10/100 Base-T) Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP Interoperability ONVIF(Profile S&G&T);CGI;SDK Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (512 GB); FTP/SFTP; NAS Browser IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions Management Software DMSS; DSS Pro Mobile Client iOS; Android Certification Certifications CE: EN55032/EN55024/EN50130-4 Port Audio Input 1 channel (LINE IN, bare wire) Audio Output Audio Output: 1 channel (LINE OUT, bare wire); built-in speaker (mutually exclusive) Alarm Input 2 (on-off value input: 0–5 VDC) Alarm Output 1 Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital input; audio; warning light Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Power Power Supply 12 VDC, 3 A ± 10%; PoE (802.3at) Power Consumption Basic: 12 W Max. (Basic power consumption illuminator sound and light warning PTZ operation Heater ): 25 W (12 VDC) Environment Operating Temperature –40 °C to 65 °C (–40 °F to 149 °F) Operating Humidity ≤ 95% Protection TVS 6000 V lightning proof;IP66; surge protection; voltage transient protection Structure Product Dimensions 160.0 mm × 184.4 mm × 304.6 mm (6.30″ × 7.26″ × 11.99″)(L × W × H) Net Weight 3.41 kg (7.52 lb)
